G-7 Laminate
G-7 Laminate Overview

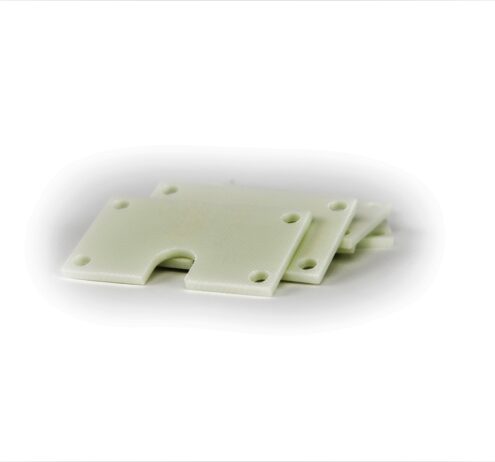

What is the Material: G-7 Laminate is a thermoset material, which consists of glass fabric filled with silicone resin.
Key Material Features: This material is beneficial in applications where mechanical and electrical properties must be retained in environments of high heat and humidity.
Other Considerations: At low temperatures the silicone resin is not as strong as epoxies and other phenolics.
Physical
| Property | Value | Typical ASTM Test |
|---|---|---|
| Chemical Designation | (G-7) Glass Silicone | |
| Trade Names (®, ™) | Resiten G7 | |
| Filler | Silicone | |
| Color | White | |
| Density (g/cm^3) | 1.8 | D 792 |
Mechanical
| Property | Value | Typical ASTM Test |
|---|---|---|
| Tensile Strength at Yield (psi) | 27700 | D 638 |
| Flexural Strength (psi) | 20000 | D 790 |
| Compression Strength: 10% Strain (psi) | 44800 | D 695 |
| Impact Strength (Izod) (ft-lbs/in) | 6.5 | D 256 |
| Hardness (M) | 105 | D 785 |
Thermal
| Property | Value | Typical ASTM Test |
|---|---|---|
| Service Temperature Continuous (°F) | 430 | |
| Service Temperature Minimal (°F) | -200 | |
| Thermal Expansion (CLTE) (in/in/°F) | 1.00E-05 | D 696 |
Electrical
| Property | Value | Typical ASTM Test |
|---|---|---|
| Dielectric Strength (V/mil) | 350 | D 149 |
| Dissipation Factor (1MHz) | 0.022 | D 150 |
| Dielectric Constant (1MHz) | 4.5 | D 150 |
Other
| Property | Value | Typical ASTM Test |
|---|---|---|
| Moisture Absorption (%) (24 Hours) | 0.35 | D 570 |
| Flammability | V-0 |
The data stated are typical values intended for reference and comparison purposes only. The data should not be used as a basis for design specifications or quality control. The information is provided as a guide to the best of our knowledge and given without obligation or liability. Testing under individual application circumstances is recommended.
