G-9 Laminate
G-9 Laminate Overview

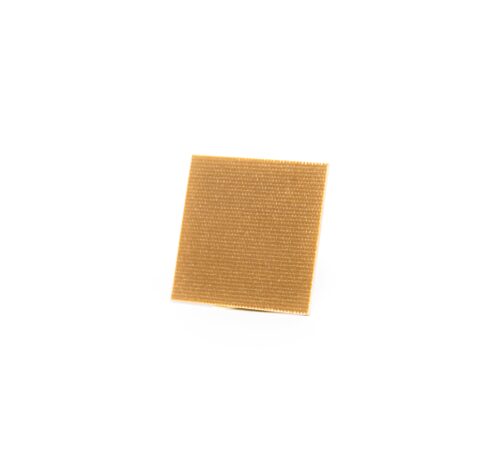

What is the Material: G-9 Laminate is a thermoset material, which consists of glass fabric filled with melamine resin.
Key Material Features: This material is beneficial in applications requiring dimensional stability, electrical arc resistance, chemical resistance, low moisture absorption, and abrasion resistance. This material is recommended in wet conditions, where mechanical properties are required.
Other Considerations: Melamine filled are the hardest laminates. G-9 is a substitute for G-5.
Physical
| Property | Value | Typical ASTM Test |
|---|---|---|
| Chemical Designation | (G-9) Glass Melamine | |
| Trade Names (®, ™) | Lamitex G-9 | |
| Filler | Melamine | |
| Color | Brown | |
| Density (g/cm^3) | 1.85 | D 792 |
Mechanical
| Property | Value | Typical ASTM Test |
|---|---|---|
| Tensile Strength at Yield (psi) | 61600 | D 638 |
| Flexural Strength (psi) | 61600 | D 790 |
| Compression Strength: 10% Strain (psi) | 65000 | D 695 |
| Impact Strength (Izod) (ft-lbs/in) | 5.5 | D 256 |
| Hardness (R) | 125 | D 785 |
| Hardness (M) | 115 | D 785 |
Thermal
| Property | Value | Typical ASTM Test |
|---|---|---|
| Service Temperature Continuous (°F) | 285 | |
| Service Temperature Minimal (°F) | -200 | |
| Thermal Expansion (CLTE) (in/in/°F) | 1.50E-05 | D 696 |
Electrical
| Property | Value | Typical ASTM Test |
|---|---|---|
| Dielectric Strength (V/mil) | 370 | D 149 |
| Dissipation Factor (1MHz) | 0.018 | D 150 |
| Dielectric Constant (1MHz) | 6.3 | D 150 |
Other
| Property | Value | Typical ASTM Test |
|---|---|---|
| Moisture Absorption (%) (24 Hours) | 0.6 | D 570 |
| Flammability | V-0 |
The data stated are typical values intended for reference and comparison purposes only. The data should not be used as a basis for design specifications or quality control. The information is provided as a guide to the best of our knowledge and given without obligation or liability. Testing under individual application circumstances is recommended.
