LubX CV
LubX CV Overview

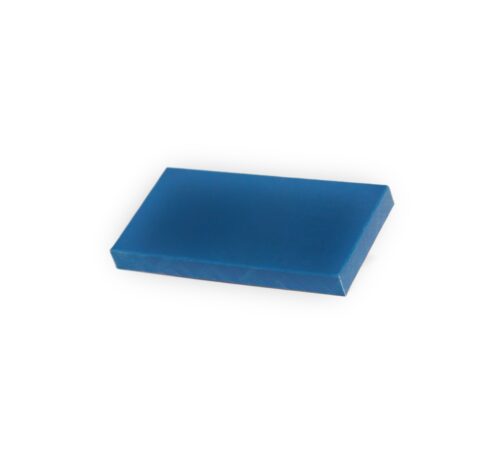

What is the Material: UHMW-PE LubX CV is a semi-crystalline material filled with a proprietary lubricant.
Key Material Features: This material is beneficial for being modified to reduce slip-stick, while maintaining many of the properties of other UHMW-PE materials including wear resistance, impact resistance, corrosion and chemical resistance, low friction, and low moisture absorption.
Other Considerations: This material is capable of handling loads greater than LubX C and it retains key physical properties at low temperatures.
Physical
| Property | Value | Typical ASTM Test |
|---|---|---|
| Chemical Designation | (UHMW-PE) Ultra High Molecular Weight Polyethylene | |
| Trade Names (®, ™) | LubX CV | |
| Filler | Lube Blend | |
| Color | Blue | |
| Density (g/cm^3) | 0.94 | D 792 |
Mechanical
| Property | Value | Typical ASTM Test |
|---|---|---|
| Tensile Strength at Yield (psi) | 2700 | D 638 |
| Elongation at Break (%) | 250 | D 638 |
| Hardness (D) | 60 | D 785 |
Thermal
| Property | Value | Typical ASTM Test |
|---|---|---|
| Melting Point (°F) | 275 | D 3418 |
| Deflection Temperature (°F) (264 psi) | 108 | D 648 |
| Service Temperature Continuous (°F) | 180 | |
| Thermal Expansion (CLTE) (in/in/°F) | 1.00E-4 | D 696 |
Electrical
| Property | Value | Typical ASTM Test |
|---|---|---|
| Specific Surface Resistance (Ω/square) | 1.00E12 | D 257 |
| Volume Resistivity (Ω*cm) | 1.00E14 | D 257 |
Other
| Property | Value | Typical ASTM Test |
|---|---|---|
| Moisture Absorption (%) (24 Hours) | 0.01 | D 570 |
| Moisture Absorption (%) (Saturated) | 0.01 | D 570 |
| Flammability | HB |
The data stated are typical values intended for reference and comparison purposes only. The data should not be used as a basis for design specifications or quality control. The information is provided as a guide to the best of our knowledge and given without obligation or liability. Testing under individual application circumstances is recommended.
